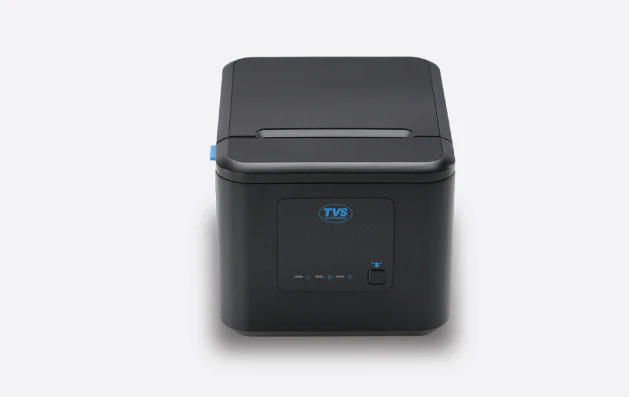

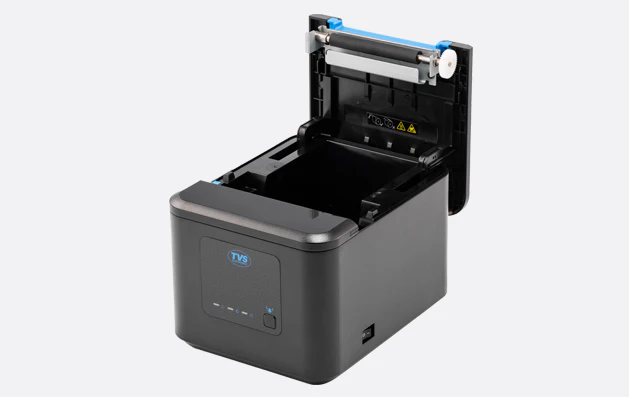

RP 3230 thermal printer comes with different wired options such as USB, Serial, Ethernet and cash drawer port, making it an exemplary choice for Retail and Hospitality segments. Its High-speed printing enhances swift billing and ticketing, thus reducing long queues. Equipped with three at-a-glance LEDs for visualizing printer status.
- Printing Method
- Direct thermal printing
- Resolution
- 203 DPI (8dots/mm)
- Print Width
- 72mm / 48mm
- Print Speed
- Max. 230mm/s
- Emulation
- ESC/POS
- Page Mode
- Support
- Page Type
- Thermal continuous paper
- Paper width
- 79.5±0.5mm/57.5±0.5mm
- Paper Container
- Max. 83mm
- Paper Feed
- Upward feed direction
- Standard
- USB Type-B, Ethernet, Serial, Cash drawer
- Barcode 1D
- UPC-A, UPC-E, Code 39, Code 93, Code 28, EAN8, EANI3, Interleaved 2 of 5, Codabar
- Barcode 2D
- QR Code, PDF417
- Chinese Character
- Simplified/Traditional: (24 x 24 dots)
- English Character
- ASCII: Font A 12*24, Font B 9*17
- Code Page
- 47
- Graphics
- Support bitmap printing and bitmap downloading with different density and user defined (Max. 64K for each bitmap and the total bitmap cannot exceed 512K)
- Buzzer
- Internal buzzer kitchen bell (optional)
- Sensor (Standard)
- Paper end, cover opening, cutter jam, TPH over-temperature
- Sensor (Optional)
- Black mark sensor
- Interface
- Wifi (optional)
- RAM
- 4 MB
- Flash
- 4 MB
- Input Power
- ACI00V - 240V, 50/60Hz
- Output Power
- DC 24V 2A
- Driver
- Windows 7/8/10, Windows Server 2008/2012/2016 Linux, Javapos, OPOS, MacOS
- Utility Tool
- Windows 7/8/10, Windows Server 2008/2012/2016
- TPH Life
- 100 km
- Cutter Life
- 1,500,000 times
- Operating
- 0-45°C / 5-95%RH No condensation
- Storage
- 20-70°C / I5-95%RH No condensation
- Certification
- BIS
- Weight
- 0.916 kg
- Dimension LxWxH
- 140x 179 x117 mm
