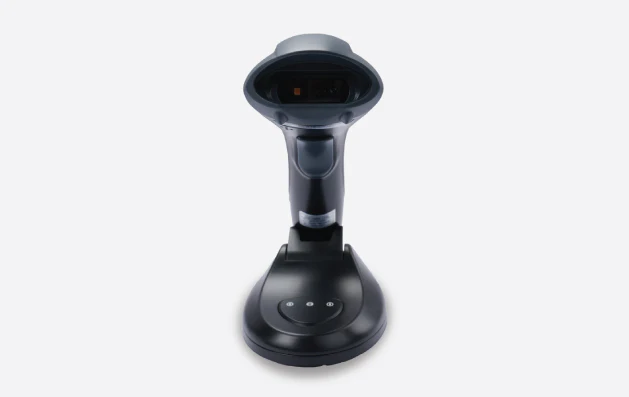

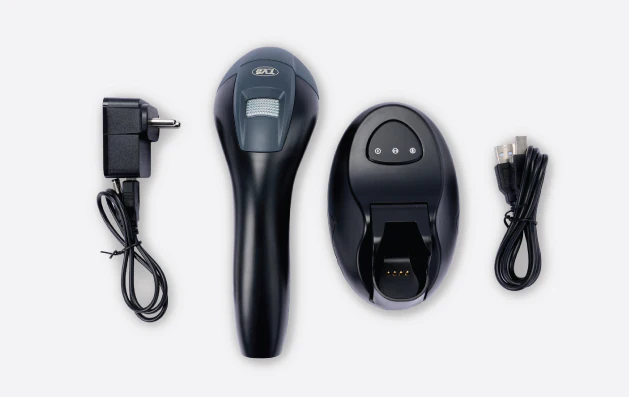

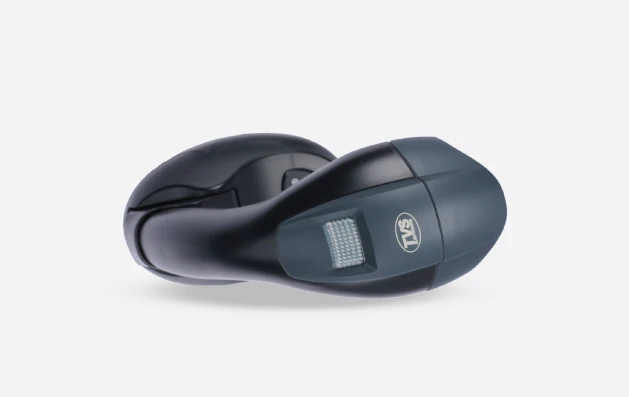

Do more with every scan in every second with the BS-i203s BT Lite. It comes with better functionality and comfort with higher storage and easy cradle charging.
- Light Source
- 617nm LED aimer
- White LED
- Supported
- 1D: code128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleave 2 of 5, code 39, code 93, code 32, codabar, matrix 2 of 5, Industrial 25, IATA 25, MSI plessey, GS1 databar, plessey, Febraban, Composite.
- 2D: QR code, micro QR, Data matrix, PDF 417, micor PDF 417, Aztec, Hanxin, Maxicode, Dotcode, chinese direct transmission.
- Scan type
- Image CMOS
- Resolution
- 640*480
- Scan mode
- Handheld 2D Barcode Scanner
- Scan speed
- 300 scans/sec
- Scan angle
- yaw 45Ā° rotation 360Ā° pitch 45Ā°
- Precision
- ā„5million
- Contrast
- ā„10%
- Depth of scan field
- EAN13 35 mm-330 mm (13 million) QR 20 mm -160 mm (20 million) PDF 417 60mm-90mm 6.67mil
- Error rate
- 1/5 million
- Interface
- USB HID
- USB com
- Communication mode
- Paired dedicated receiver
- 2.4g communication
- paired mobile bluetooth devices
- Bluetooth BLE 4.0
- Transmission distance
- 30-50 meters (open yard)
- Storage mode
- Offline storage mode: when th scanner exits the connection range, the data is auotmatically stored, storage capacity is 512000 characters
- Inventory storage mode: scanner can enter inventory mode.
- Pairing Mode
- one to one: One scanning gun pairs to one receiver, One scanner paired with bluetooth mobile device.
- Operating temperature
- ~20ā to 50ā
- Storage temperature
- ~40ā to 70ā
- Relative humidity
- 0%~95%
- Dimensions
- 86.5*137*168mm
- Weight
- 279 g
- Cable length
- 1.2 m
- Drop shock resistence
- Multiple times 3 mtr on concrete
- Material
- ABS+PC
- Voltage
- DC5VĀ±5%
- Operating current
- 280mA
- Battery working time
- 6 hours
- Lithium battery
- 1400ma
- Standby current
- 0 ma
- Charging time
- 3.5 hours
- Charge mode
- Contact the charging
